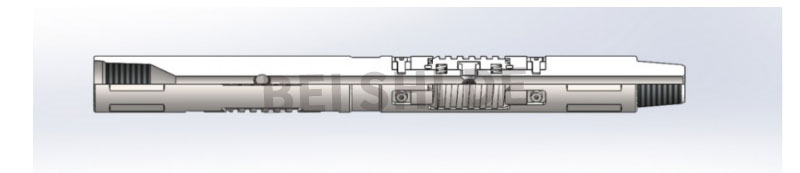

Hydraulic casing scraping tool

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:

Hydraulic casing scraper of the hydraulic multifunctional wall scraping device is in drilling, grinding, milling and other operations when scraping the wall wiper blade is limited in the ontology slot, and completed in drilling, grinding, milling and other operations, through the pump pressure from wellhead ball piston will launch scraper, scrape the wall is just like conventional mechanical scraping the wall is a kind of work, can scrape the wall and the circulation operation, do a well and improve the work efficiency of all kinds of work.y of all kinds of work.

Specification

Cylinder outer diameter

the inside diameter of

Scraper outer diameter

length

Starting pressure

Connection buckle

5

Ø98mm

Ø28mm

Ø112mm

1100mm

20-22MPa

2 3/8 IF.BxP

5 1/2″

Ø105mm

Ø30mm

Ø126mm

1120mm

20-22MPa

2 7/8 IF.BxP

7″

Ø135mm

Ø38mm

Ø164mm

1150mm

20-22MPa

3 1/2 IF.BxP

7 7/8

Ø156mm

Ø42mm

Ø182mm

1180mm

20-22MPa

3 1/2 IF.BxP

9 5/8

Ø205mm

Ø55mm

Ø230mm

1250mm

20-22MPa

4 1/2 IF.BxP
