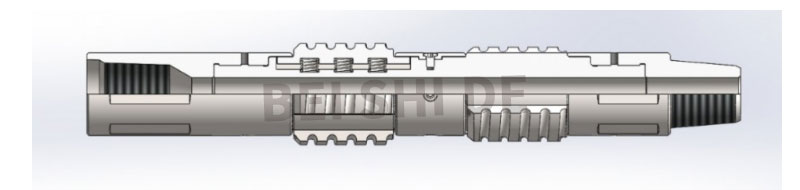

Casing scraping tool

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:

Casing wall scraping tools can be used to remove mud hardened blocks, cement rings, rust and cementing residues, hard wax, various salt crystals and sediments, perforating burr and iron oxide produced by casing corrosion on the inner wall of the wellbore, which is conducive to the success rate of other downhole tools.

SIZE

OD

ID

Length

Max OD

Casing size

Thread

5 1/2″

Ø105mm

Ø42mm

830mm

Ø129mm

Ø121-Ø127mm

2 7/8 IF.BxP

6 5/8

Ø130mm

Ø50mm

910mm

Ø155mm

Ø144-Ø155mm

3 1/2 IF.BxP

7″

Ø146mm

Ø60mm

1300mm

Ø168mm

Ø154-Ø168mm

3 1/2 IF.BxP
