External Anchor Connector

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:

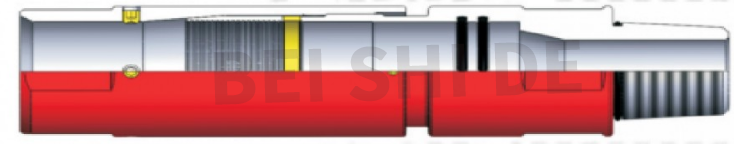

The external anchoring connector has the function of connecting coiled tubing with downhole tools. The connector is composed of connector body, anchoring structure and lower connector. The anchoring mechanism is pushed by the upper fastening and pressure, and the anchoring mechanism and the tubing are occluded, thus realizing the connection between the connector and the coiled tubing.

SIZE

OD

ID

Length

Tensile strength

Thread

2.125″

Ø54mm

Ø25.4mm

304mm

32T

1"AMMT

2.375″

Ø60.3mm

Ø25.4mm

288mm

32T

2.875″

Ø73mm

Ø38.1mm

326mm

45T

2 3/8"PAC

3.125″

Ø79.3mm

Ø38.1mm

353mm

50T
