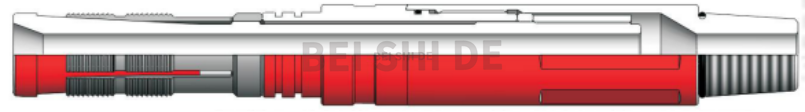

Internal anchor connector

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:



The inner anchor connector has the function of connecting downhole tools with coiled tubing. When connecting, the anchoring mechanism is inserted into the inner wall of the coiled tubing, and the pre-tightening can make the coiled tubing occlude with the anchoring mechanism. It has a certain anti-torque ability and is suitable for sand washing, air lift and other operations.

SIZE

OD

ID

Length

Tensile strength

Thread

1.5″

Ø43mm

Ø17.5mm

267mm

8T

1"AMMT

1.75″

Ø45mm

Ø17.5mm

267mm

10T

2″

Ø50.8mm

Ø23.3mm

348mm

29T

1.5"AMMT
