Roll - On connector

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:

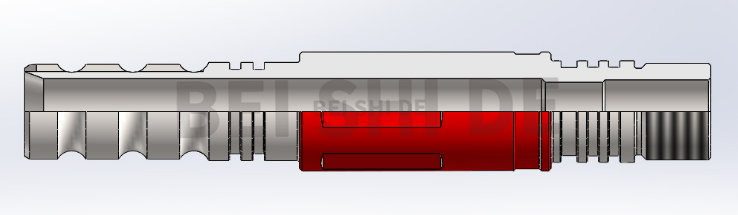

Roll-On connector has the function of connecting coiled tubing with downhole tools. The connector is connected to the end of the coiled tubing through a special rolling tool. The outer diameter of the connector is generally consistent with the outer diameter of the matching continuous tubing, and can also be adjusted according to customer requirements.

SIZE

OD

ID

Length

Tensile strength

Thread

1.25″

Ø32mm

Ø13mm

230mm

10T

1"AMMT

1.5″

Ø38.1mm

Ø19mm

230mm

16.7T

1.75″

Ø44.5mm

Ø19mm

230mm

20.7T

2″

Ø54mm

Ø25.4mm

245mm

31.6T

1.5"AMMT

2.375″

Ø60.3mm

Ø25.4mm

245mm

40T
