GS hydraulic spear

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:

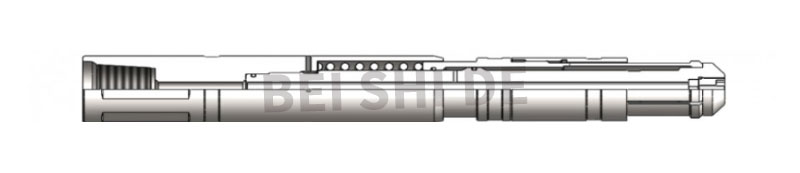

Features:GS Hydraulic retractable GS salvage spear can be used for downhole tools with standard GS salvage neck. Some tools are designed with standard GS salvage neck and GS hydraulic retractable salvage spear, which greatly improves the salvage success rate. The tool has high strength and can be operated under pressure; it relies on pressure difference to release without cutting pins and throwing balls; the release device is reliable and can minimize the force on the salvage spear.

SIZE

OD

ID

Length

TEMP

Tensile strength

Thread

2 1/8"

Ø54mm

Ø10mm

465mm

35MPa

65T

1" AMMT

2 7/8"

Ø73mm

Ø15mm

640mm

35MPa

65T

2 3/8 PAC
