Scraping integrated tool

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:

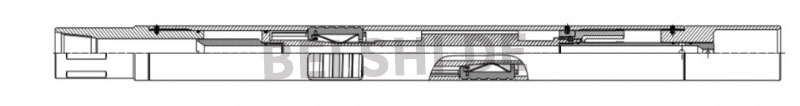

The tool can finish well, test pressure of tubing, shaving casing, backwash well and other functions. The main structure of the tool includes well gauge, scraping mechanism and backwashing mechanism. When the tool enters the well, the scraper is in a contraction state. After entering the well, the scraper can be opened at any time according to the actual needs of the site, which can effectively shorten the operation time and improve the construction efficiency.

SIZE

OD

ID

Max OD

Casing size

Thread

5 1/2″

Ø115mm

Ø30mm

Ø124mm

Ø121-Ø127mm

2 7/8 IF.BxP

7″

Ø146mm

Ø20mm

Ø160mm

Ø154-Ø168mm

3 1/2 IF.BxP
