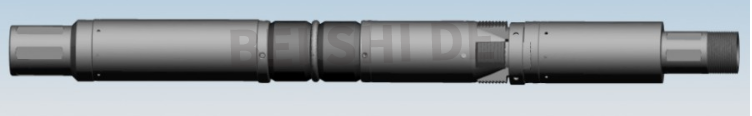

Y241Packer

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:

Y241 packer can be used for layered acidification, layered fracturing, stratified water injection, stratified extrusion, completion and oil recovery. Kava can keep the packer rubber tube firmly in the position of the seal, the rubber tube fluctuates smaller sealing effect better, can greatly extend the validity of the water injection well. The tool not only can be used separately, but also can be used with hydraulic anchor and other tools.

SIZE

OD

ID

Length

TEMP

Pressure

Thread

Y241-106

Ø106mm

Ø48mm

1300mm

≤120℃

≤50Mp

2 7/8TBG.B×P

Y241-115

Ø115mm

Ø52mm

1324mm

≤120℃

≤50Mp

2 7/8EUE.B×P

Y241-148

Ø148mm

Ø62mm

2700mm

≤120℃

≤50Mp

2 7/8EUE.B×P
