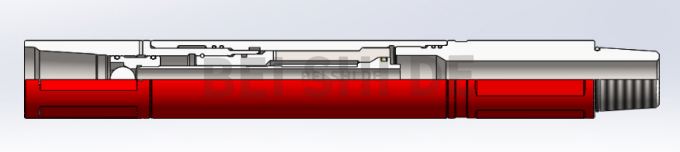

Hydraulic safety sub

Number:



Specifications:



Surface treatment:



Processing methods:



Supply standards:



Product introduction:

Hydraulic safety joint has the function of emergency handing-off when downhole tools are stuck. Throwing the ball, pressing and shearing the pin to achieve the loss of hand, leaving the built-in standard "GS" salvage neck after the loss, salvage using GS salvage spear. The tool can effectively transfer torque, withstand large impact force, and the drop pressure can be adjusted. It is widely used in cutting, drilling and grinding, fishing and other operations.

SIZE

OD

ID

Length

Tensile strength

Thread

1.75″

Ø43mm

Ø12mm

435mm

11.7T

1"AMMT.BxP

2.125″

Ø54mm

Ø17.5mm

586mm

25T

1.5"AMMT.BxP

2.875″

Ø73mm

Ø20mm

542mm

78T

2 3/8PAC.BxP
